MAGNETIC FIELD MEASUREMENT APPARATUS Biot Savart?s Law Set-up

Category: Electronics

Model No:MFM- 01

The experiment consists of two coils, Constant Current Power Supply and Gaussmeter. The Gaussmeter probe is mounted on a rail with a scale. It can move smoothly and precisely for measurement of magnetic field along the centre of the coils.

Product Description

The experiment consists of two coils, Constant Current Power Supply and Gaussmeter. The Gaussmeter probe is mounted on a rail with a scale. It can move smoothly and precisely for measurement of magnetic field along the centre of the coils.

Scope of Learning:

  • Study of magnetic field due to one coil and calculation of its diameter.
  • Study of principal of super-imposition of magnetic field due to 2 coils by keeping the distance between the coils at a, greater than a and less than a, where a is the radius of the coil.

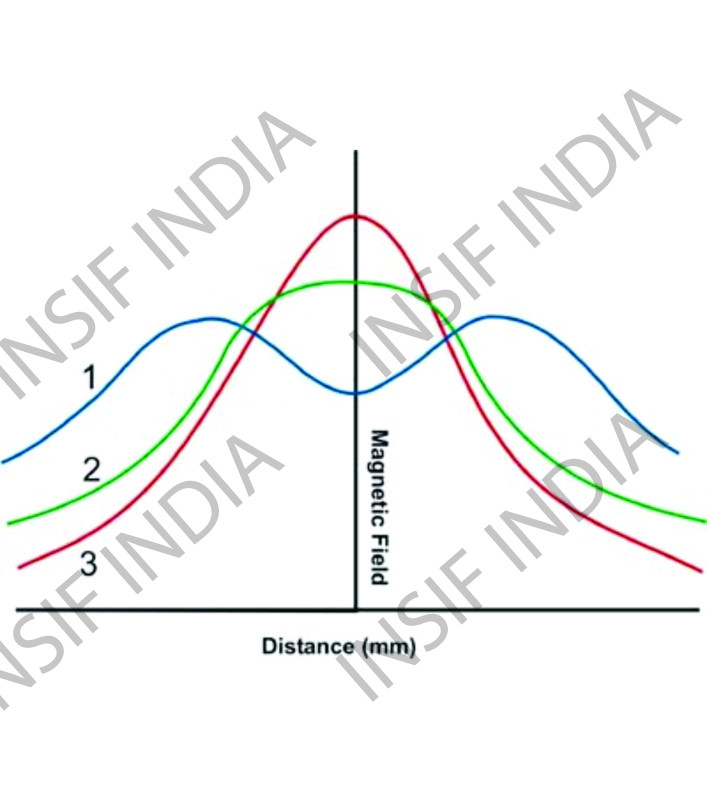

  • Line 1 : Magnetic Prole when the distance between the coils is > a
  • Line 2 : Magnetic Prole when the distance between coils is =a
  • Line 3 : Magnetic Prole when the distance between coils is <aSuperimposition overlaps completely

Technical Specifications:

Gauss meter

  •     Gauss Range     :    0-20 KG
  •     Sensor        :    InAs
  •     Type        :    Axial

Electromagnet Power supply

  •     Voltage         :    0-60V DC
  •     Current        :    6A Max
  •     Safety         :    Fuse 5A

Two Coils

  •     Diameter     :    200 mm
  •     Coils        :    2 Nos

Optical Rail Bench

  •     Length         :    100 cm
  •     Riders         :    2 Nos
  •     Feets          :    2 Nos

The 2 coils are mounted on platform , coils move smoothly on a rail along with the axis of the coils.

  • Connecting Wires    :    2 No
  • Input Mains              :    220-230V AC 50Hz
  • Weight                     :    10 Kg Approx
